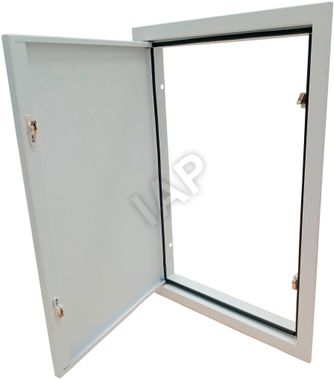

Access panel Elite reinforced 1 mm push 500*500

Access panel Elite reinforced 1 mm push 500*500
Access panel Elite reinforced 1 mm push 500*500
Access panel Elite reinforced 1 mm push 500*500
Access panel Elite reinforced 1 mm push 500*500
Access panel Elite reinforced 1 mm push 500*500
Access panel Elite reinforced 1 mm push 500*500
Availability
In stock
Type
Standard
RAL color
9003 Moire
Sealant
Rubber seal around the perimeter of the hatch frame
Door's sizes
490 mm * 490 mm (W * H)
Door type
Swing door
Landing dimensions
500 mm * 500 mm (W * H)
Overall sizes
560 mm * 560 mm * 52 mm (W * H * D)
Weight
4.2 kg
Material
Steel
Metal thickness
1 mm * 1 mm (FT * DT)
Go to full specifications
Availability
In stock
Overall Size (mm)
560 * 560 * 52 (W * H * D)
Type
Standard
Fit size (mm)
500 * 500 (W * H)
Guarantee period
1 year
Sealant
Rubber seal around the perimeter of the hatch frame
Material
Steel
Opening system
Swing door
Type of Painting
powder
Door Dimensions (mm)
490 * 490 (W * H)
Equipment
2 (AOL)
Weight (kg)
4.2
Assembly Method in Factory
Electric welding
Locking mechanism
Spring latches
Fixation method of door to the frame
Screw hinges
383 AED

Access panel Elite reinforced 1 mm push

General parameters

Availability
In stock
Type
Standard
RAL color
9003 Moire
Sealant
Rubber seal around the perimeter of the hatch frame
Material
Steel
Opening system
Swing door
Type of painting
powder
Equipment
Amount of locks: 2
Weight
4.2 kg
Manufacturing assembly method
Electric welding
Locking mechanism
Spring latches
Fixation method of door to the frame
Screw hinges
Guarantee period
1 year
Metal thickness
Frame thickness: 1 mm;
Door thickness: 1 mm

Размеры

Door's sizes
Width: 490 mm;
Height: 490 mm
Landing dimensions
Width: 500 mm;
Height: 500 mm
Overall sizes
Width: 560 mm;
Height: 560 mm;
Depth: 52 mm

The error in the production of hatches may be ±2 mm.

The manufacturer may change the design, appearance and technical characteristics of the model without further notice.

Access panel Elite reinforced 1 mm push 500*500 buy with delivery to the UAE. IAP online store. Call us, our consultants will help you make the right choice and place your order.
