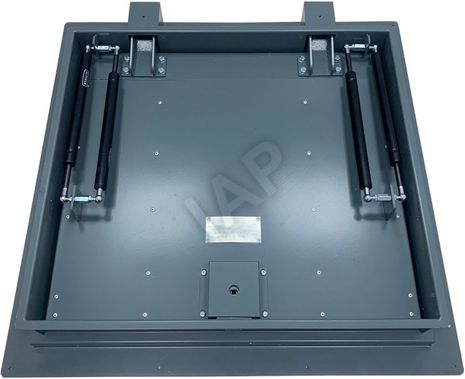

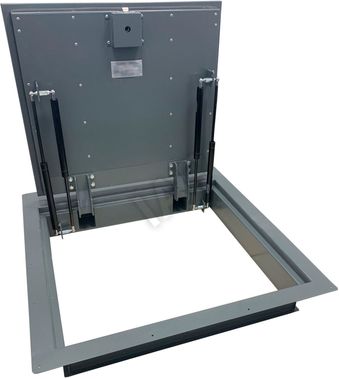

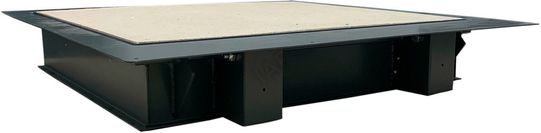

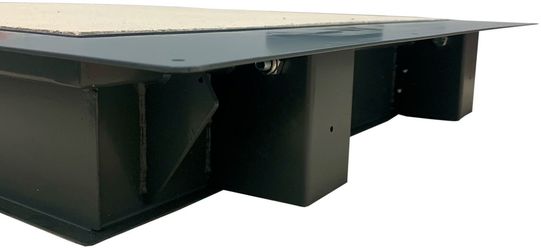

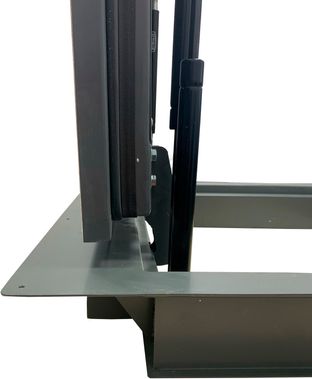

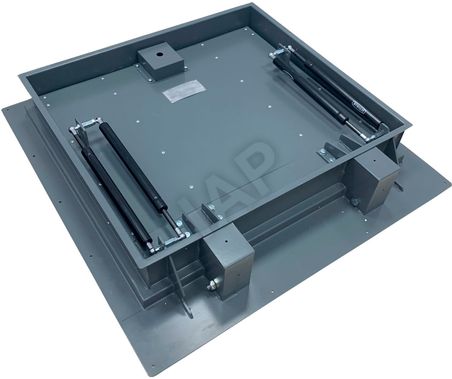

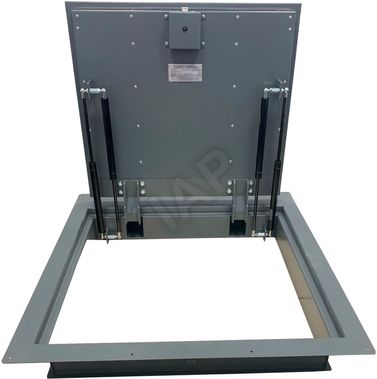

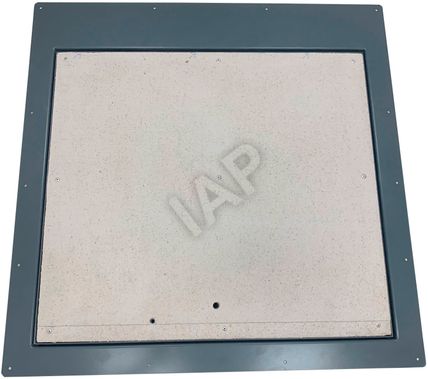

Access panel Fireproof EI60
Production time for non-standard products
17-22 working days
Pickup
From the date of receipt from production
RAL color
9006 Matte
Amount of doors
Single door
Invisibility effect
Maximum
Door type
Swing door
Sealant
Heat-activated tape 1*15 mm, FIREKS (along the entire contour of the lid) * D-shaped (along the entire contour of the lid)
Lifting mechanism
Gas shock absorbers
Possibility of opening from the inside
No
Landing dimensions
500 mm — 1000 mm * 500 mm — 2000 mm * 118 mm (W * L * D)
Overall sizes
120 mm (D)
Metal thickness
2 mm * 2 mm (FT * DT)
Material
Steel
Facing material
Tile * Board * Laminate * Parquet * Linoleum
Production time for non-standard products
17-22 working days
Pickup
From the date of receipt from production
RAL color
9006 Matte
Amount of doors
Single door
Invisibility effect
Maximum
Door type
Swing door
Sealant
Heat-activated tape 1*15 mm, FIREKS (along the entire contour of the lid) * D-shaped (along the entire contour of the lid)
Lifting mechanism
Gas shock absorbers
Possibility of opening from the inside
No
Landing dimensions
500 mm — 1000 mm * 500 mm — 2000 mm * 118 mm (W * L * D)
Overall sizes
120 mm (D)
Metal thickness
2 mm * 2 mm (FT * DT)
Material
Steel
Facing material
Tile * Board * Laminate * Parquet * Linoleum
Non-standard (custom) hatches - these are hatches of non-standard sizes, manufactured to order.
The hatch can be manufactured in almost any size, with an accuracy of +-2mm.
In the size table, non-standard hatches are highlighted in white or brown (if the hatch is double-leaf) colors.
Custom hatches are put into production only after pre-production.
The minimum prepayment amount is 50% of the order value.
Custom-made products cannot be returned or exchanged!
Floor hatch Fireproof EI60
Fitting size, mm
Width
500
600
700
800
900
1000
500
600
700
800
900
1000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
General parameters
Production time for non-standard products
17-22 working days
Pickup
From the date of receipt from production
Amount of doors
Single door
Facing material
Tile;
Board;
Laminate;
Parquet;
Linoleum
Board;
Laminate;
Parquet;
Linoleum
Opening angle
before: 90 °C
Invisibility effect
Maximum
Lid's type
On the hinge, fillable
Metal thickness
Frame thickness: 2 mm;
Door thickness: 2 mm
Door thickness: 2 mm
Lifting mechanism
Gas shock absorbers
Sealant
Heat-activated tape 1*15 mm, FIREKS (along the entire contour of the lid);
D-shaped (along the entire contour of the lid)
D-shaped (along the entire contour of the lid)
Material
Steel
Possibility of opening from the inside
No
Opening system
Swing door
Lid's insulation material
Rock wool (50 mm)
Equipment
Square wrench
Manufacturing assembly method
Electric welding
Filling of the cover
Moisture-resistant plasterboard sheet10 mm.

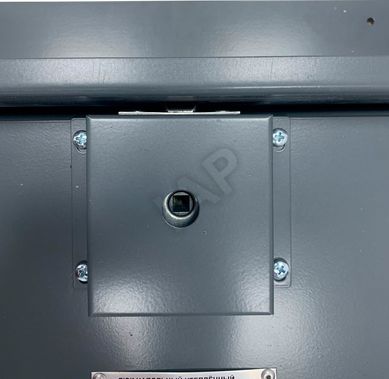

Locking mechanism
Morelli latch lock
Guarantee period
1 year
Attention
The thickness of the facing material with glue should not exceed 12 mm
The error in the production of hatches may be ±2 mm.
The manufacturer may change the design, appearance and technical characteristics of the model without further notice.
